Fully Automatic Solar Glass Loader and Customization for Glass Processing Machinery

Model NO. : IDO-GFSP-Q4-D01

Certification : ISO

Structure : Horizontal

Glass Washing Machine Type : Ultrasonic Glass Washing Machine

Condition : New

After-sales Service : 12 Months

Transport Package : Plywood Case+Anti Rust Oil +Vacuum Pumping

Trademark : IDO

Origin : China

HS Code : 8464901900

Supply Ability : 200 Sets/Year

Customization : Available

Control System : PLC

Warranty : 12 Months

Place of Origin : China

MOQ : 1 set

Delivery Time : Peak Season Lead Time: 3-6 months, Off Season Lead Time: 1-3 months

Payment Terms : LC, T/T

Contact Now

Automatic Glass Loading Line for Rolled Glass Deep Processing Line

Fully Automatic Solar Glass Loader and Customization for Glass Processing Machinery

The six-axis high-speed glass loading machine is an important link in a series of production processes of the photovoltaic glass deep-processing production line. Its design purpose is to place the glass to be processed on the material rack of the rotary table, and then the six-axis loading robot vacuum sucks the glass and then flips it to the loading On the conveyor table, it is transferred to the positioning transmission table by rollers. After the side of the positioning transmission table is positioned, it is transported to the front production line of the edger.

Serial number	Name	Value
1	Equipment size (WLH)	7108mm * 3750mm * 900mm _
2	Equipment weight	4500kg
3	Rated power	380V/50Hz
4	rated power	22kw
5	Rotary loading table load	A total of 7 tons on both sides
6	Operating temperature	≤55ºC
7	Air pressure	0.5~0.7Mpa
8	Product Standards	Maximum size: 1400mm2500mm Minimum size: 600mm1200mm; Thickness range: 2.0mm-4.0mm ( according to technical agreement )

serial number	name	serial number	name
1	Rotary loading table	2	Six axis loader
3	Loading conveyor table	4	positioning transfer station

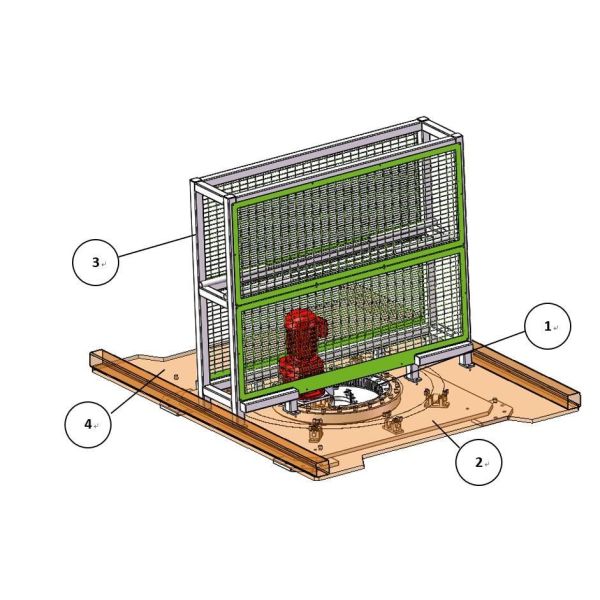

1. Main structure of the rotary loading table

Serial number	Name	Serial number	Name
1	Rotary mechanism	2	Bottom plate
3	Glass protective frame	4	Placement rack positioning plate

2. Six-axis loading machine

Serial number	Name	Serial number	Name
1	Suction Cup Holder	2	small arm
3	big arm	4	Installation base
5	robot base

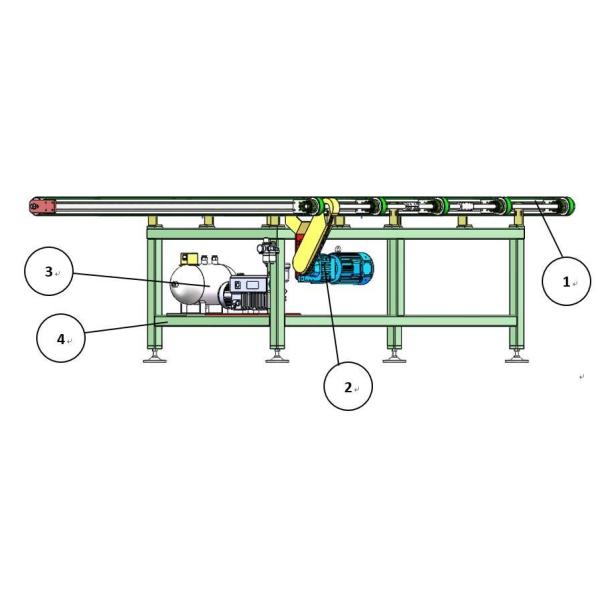

3. Loading conveyor table

Serial number	Name	Serial number	Name
1	Conveyor belt mechanism	2	Transmission mechanism
3	Vacuum pump and air bag	4	Frame

4. Conveying and positioning device

Serial number	Name	Serial number	Name
1	Conveyor	2	positioning jacking mechanism
